Clark Deep Hollowing System

Starting at:

$490.00

  • Order the basic system here.  All you need is an optional cutter. I suggest the 6″ holder with 12 mm round carbide.

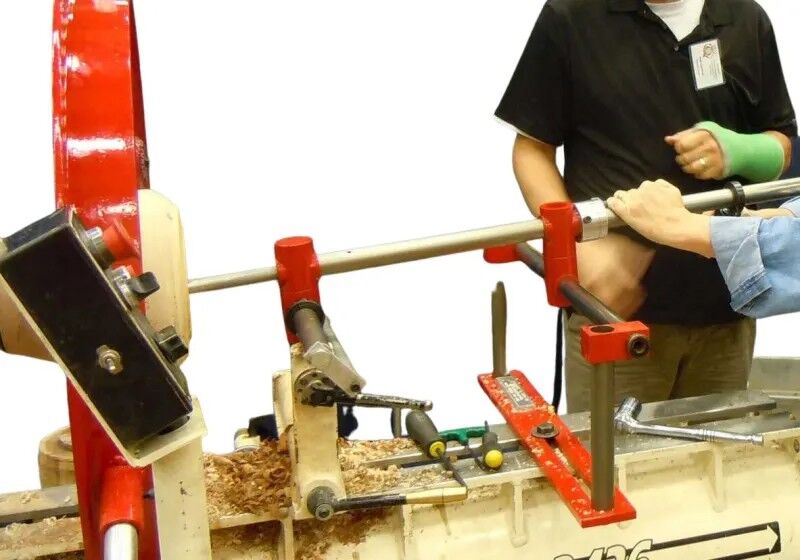

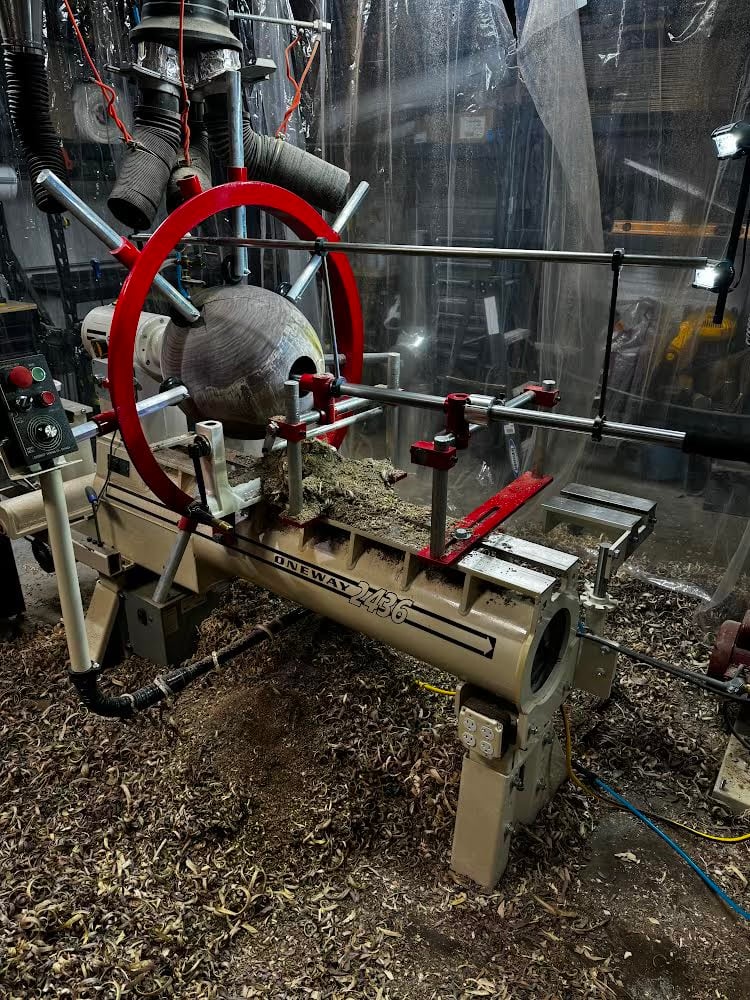

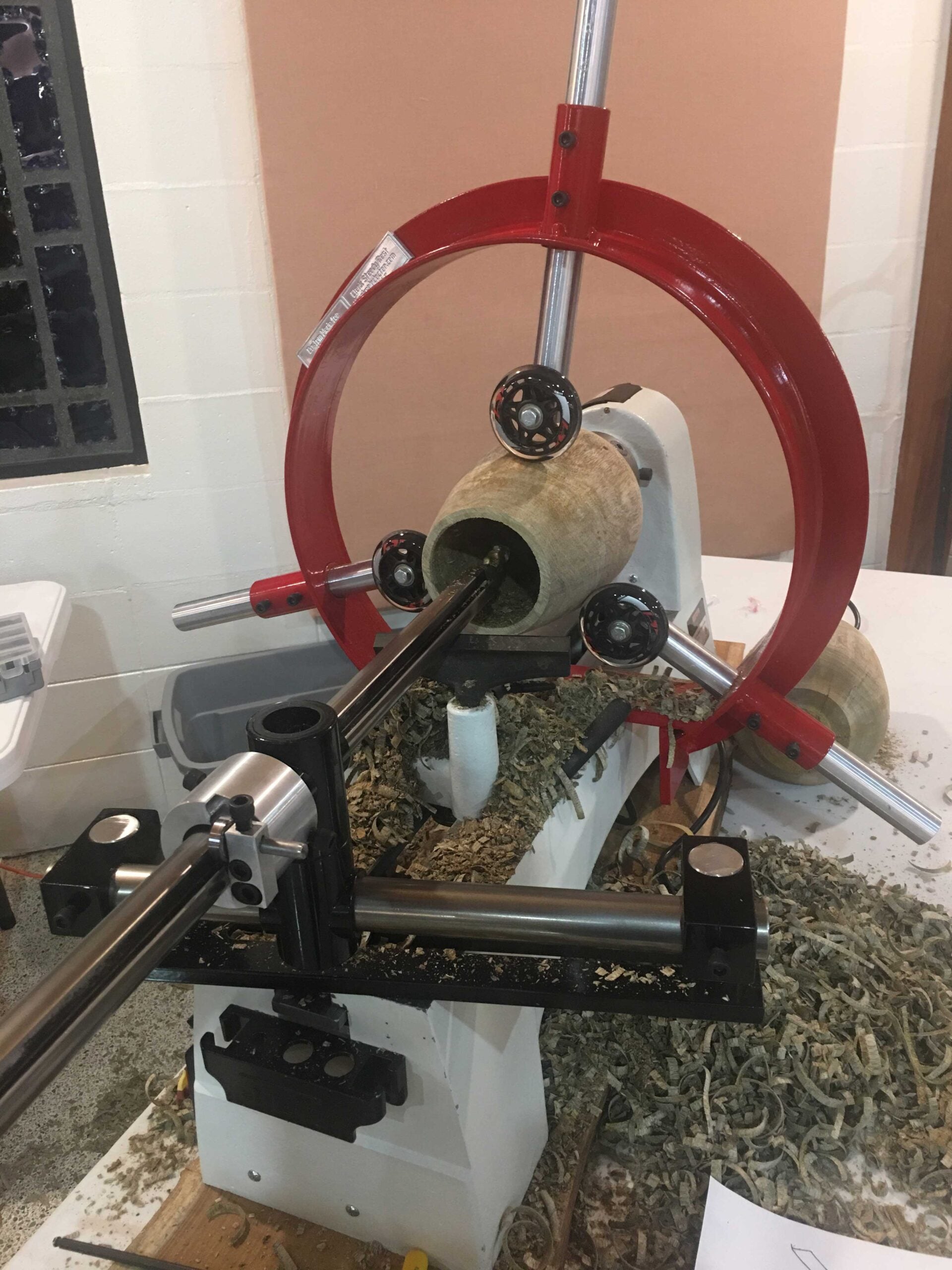

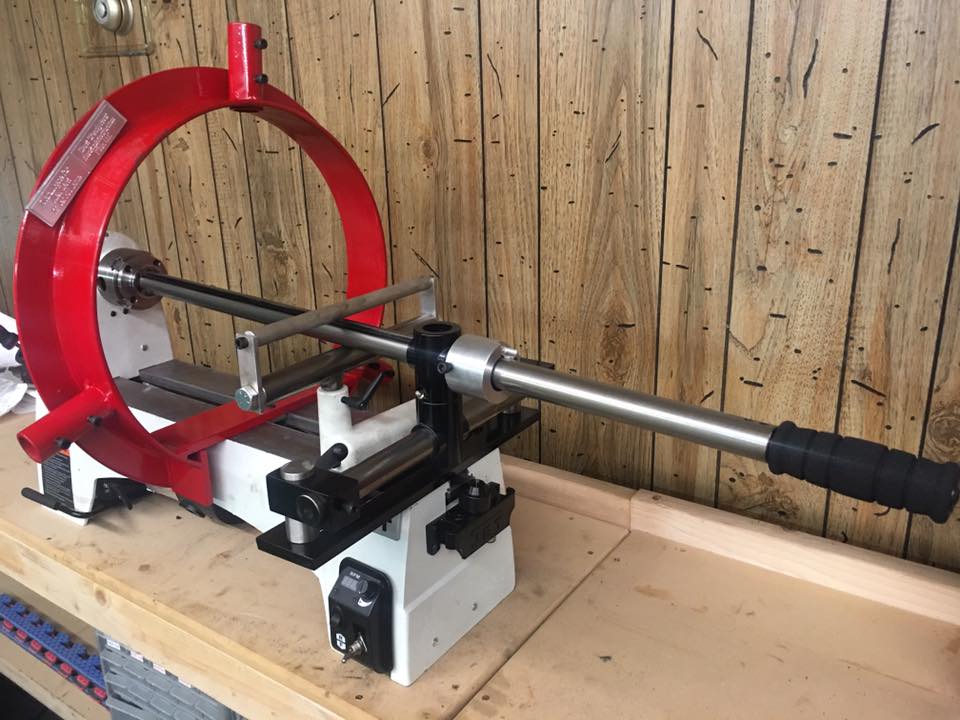

  • The Clark Deep Hollowing System and companion Clark Steady Rest can be used on the smallest projects up to the largest that will fit on your lathe. Our system is even great for a desktop mini-lathe or a midsized lathe such as a Jet, Nova, or Laguna. Even projects from 6-12 inches are tamed.
  • Start with this system and you can use any cutter holder on the market.
  • The hollowing bar is 1.25″ thick and has a 12″ deep hole.  The hole is deep enough to allow you to use almost any cutter older on the market without hangout.  No hangout means no vibration.

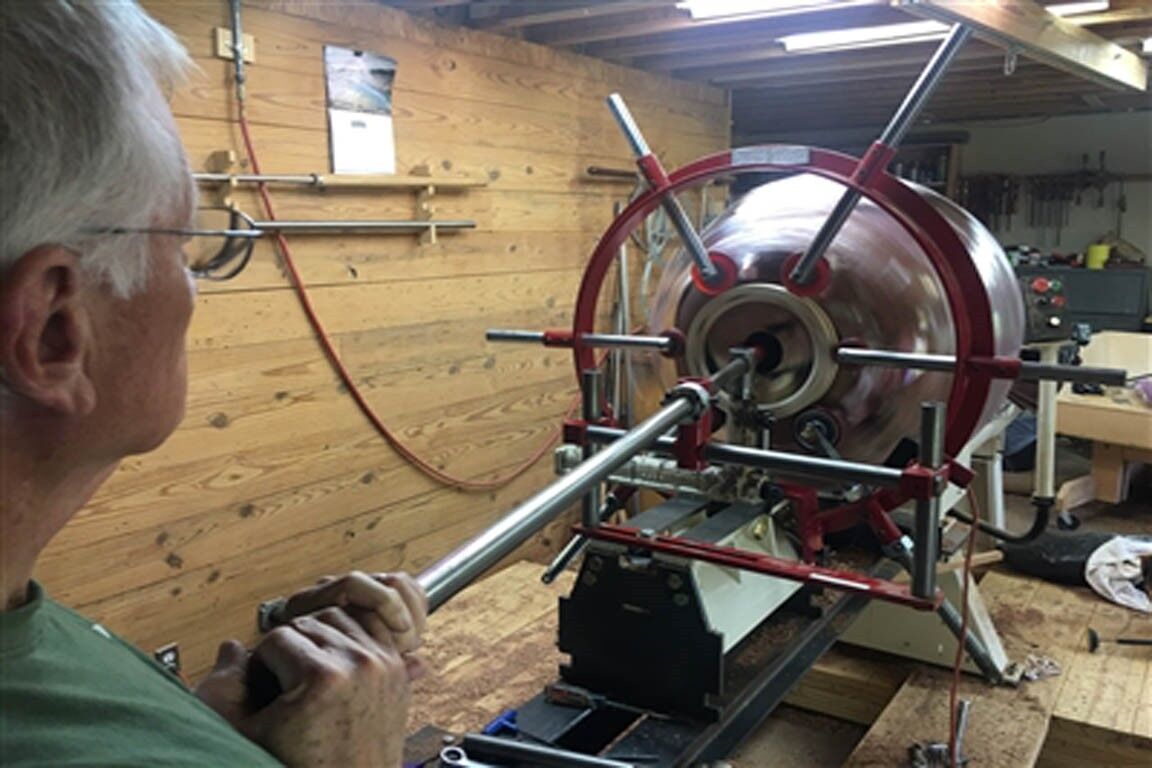

  • With a Clark Hollowing System, you can upgrade cheaply to a larger lathe later.  Preserve your ability to do much larger projects later in your woodturning career, if desired.  You will never need to buy another system as your challenges change. The system does external turning too. Trueing an out-of-round tree trunk becomes a no brainer! Our videos show how it is done.

Choose your options:

Product total
Options total
Grand total

Description

Further Information Page for HOLLOWING

Hollowing System Accessories list

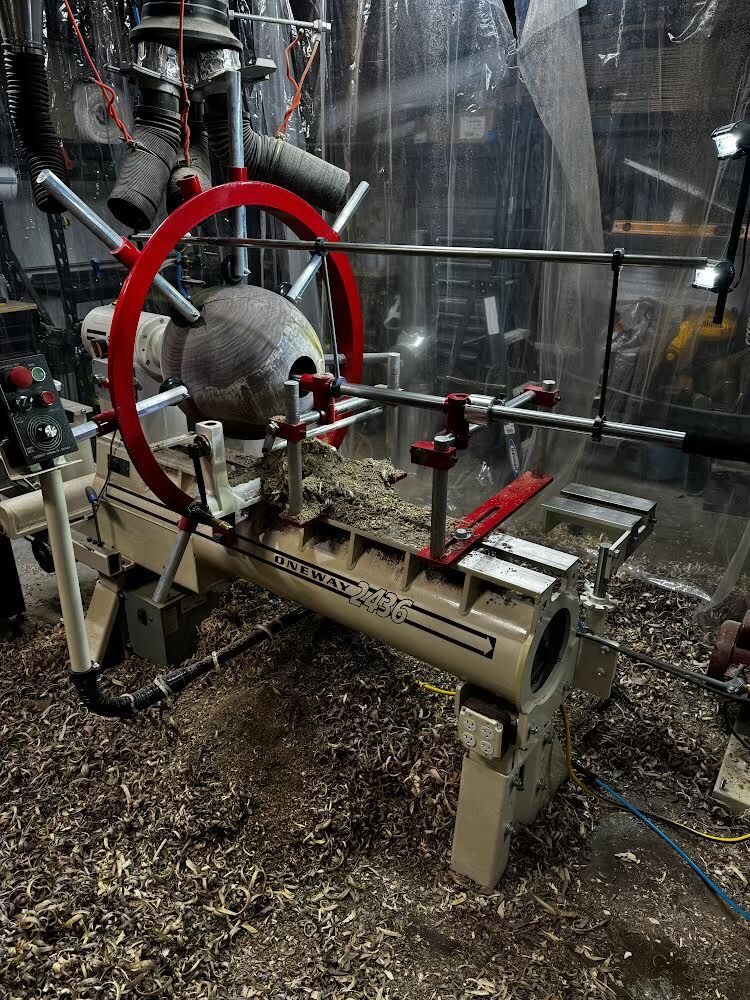

  • The Clark Deep Hollowing System (US patent 7,191,689 B2) and companion Clark Steady Rest can be used on the smallest projects up to the largest that will fit on your lathe. It is useful for more than just deep hollowing. It can be set up to do external turning with an extra base. See the video to see how it is done. We have the Clark Mini Hollowing System for 12-14 inch swing lathes.

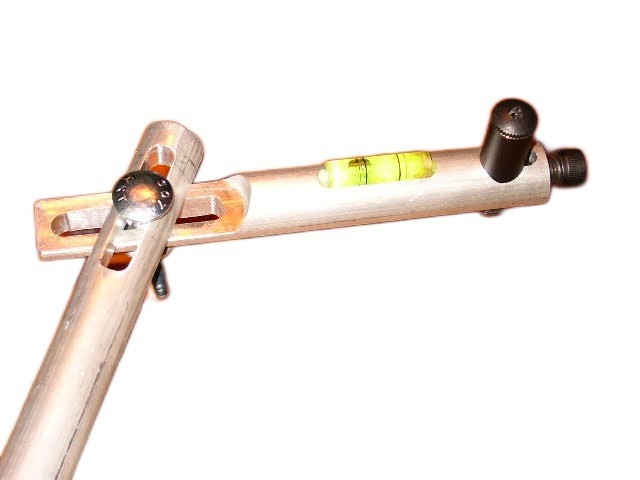

  • Clark Deep Hollowing System for 16 inch and larger swing lathes. The basic system includes 48″ hollowing bar, angle of attack adjustment feature, cross bar and uprights with attachment plate with bolt and washer. A cutter and holder for that cutter are options. There are a variety of cutters and holders and these can be custom made for you.

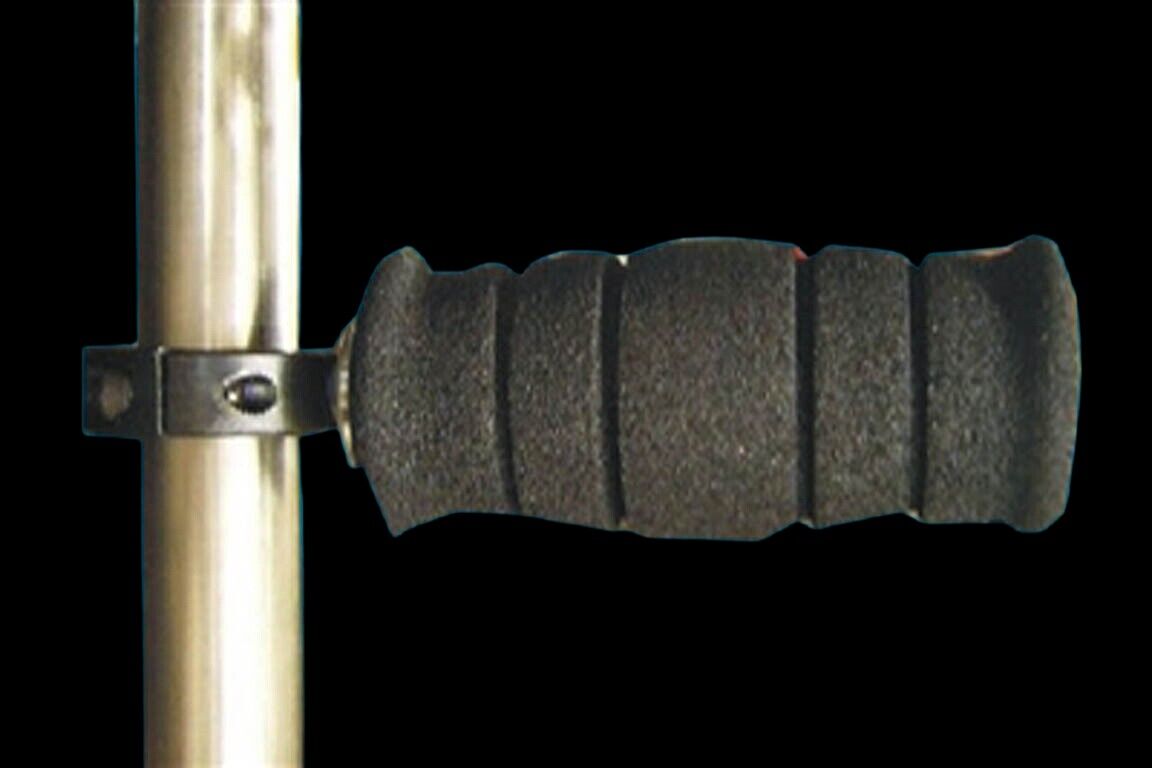

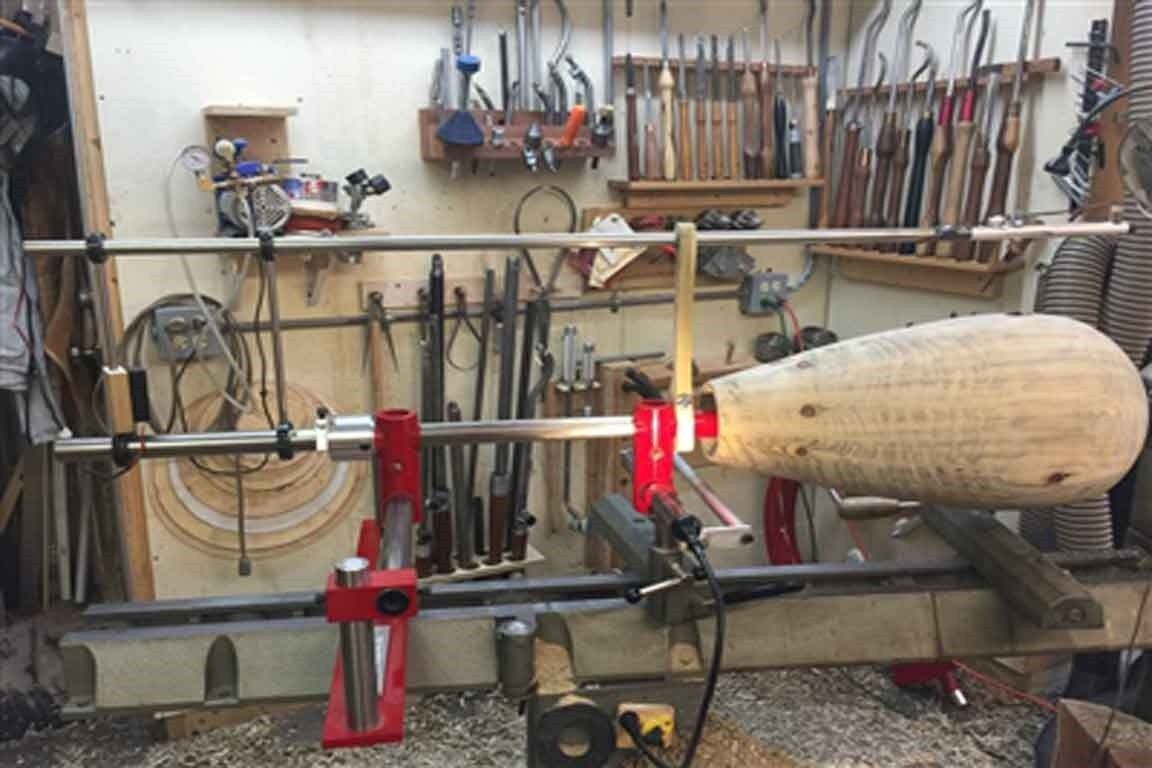

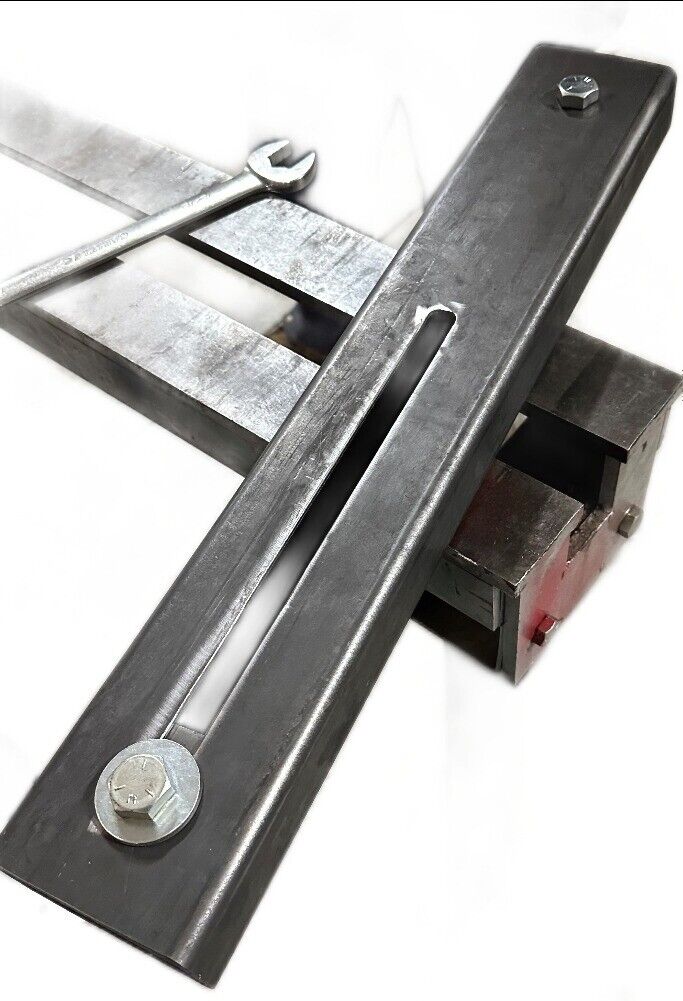

  • There are various optional accessories such as the guarded tool rest, the laser system,1/2 & 5/8″ adapters, side handle or end handle, extra base for external turning, cutters and straight and curved holders, lathe extender base, Fulcrum Support Tube, and video thickness guide that takes the place of the laser and includes a video camera and TV. We now have a segmented bar as well that is shown on video. To order a segmented bar you can just let me know in the note section what length bar is desired and then order the 14″ or 18″ extension as an additional accessory.
  • The steady rest shown is at an extra cost.

FAQ

It includes a 48-inch hollowing bar, angle of attack adjustment, cross bar, uprights, attachment plate, bolt, and washer. Cutters and holders are optional.

Small lathes or projects can use a short bar such as an 18 or 24 inch long Hollowing bar. There is a mini-Hollowing System with shorter base and uprights available too! It can be mounted on any sized lathe to compete with the many lightweight systems on the market.  Why get second best – stick with Clark Woodturning tools for the ultimate!

Yes, it is adaptable to any cutter on the market, allowing for upgrades and customizations.

Accessories include guarded tool rests, video and laser systems for thickness guides, hollowing bar extensions, various cutter holders for any cutter, lathe bed extender base, fulcrum support tube, side and end handles, extreme depth Ultrabar, and segmented bars.
